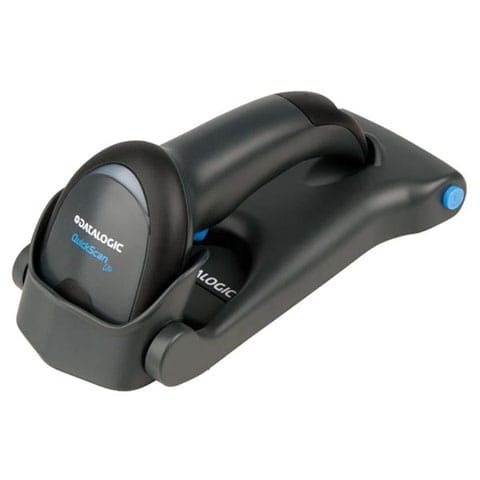

Datalogic QW2120-BKK1S Barcode Scanner

Datalogic QW2120-BKK1S Barcode Scanner is a compact, ergonomic, and efficient 1D barcode reader designed for ease of use in daily retail, office, and light manufacturing operations. Its wide-angle scan line and high-speed performance make it ideal for reading longer or wider barcodes, such as those on utility bills or electronic components. With versatile connectivity and optional hands-free scanning, the QW2120 is an excellent choice for improving workflow and accuracy.

Product Features

Ergonomic and Lightweight Design

The QW2120 is engineered for comfort and ease of use. Its compact form factor reduces fatigue during prolonged scanning sessions, making it suitable for high-volume retail or administrative environments.

Wide Scanning Angle with Extended Scan Line

A wide-angle scan line and bright, thin beam allow the QW2120 to easily capture larger barcodes without needing to increase the scanning distance. This makes it perfect for barcodes that are typically longer or unusually positioned.

High-Speed Scanning Performance

With a scan rate of up to 400 scans per second, the QW2120 delivers fast and responsive barcode reading, ensuring minimal delays and increased efficiency during operations.

Versatile Mounting Options

The included stand is lightweight, collapsible, and features a tiltable head, allowing for flexible positioning. This design allows the scanner to be used either handheld or in a hands-free mode.

Multiple Connectivity Interfaces

Available in USB, Keyboard Wedge, or RS-232 interfaces, the QW2120 adapts easily to different system setups. Choose from various packaging options including scanner-only or kit (scanner, cable, and stand) for maximum convenience.

User-Friendly Configuration

Datalogic’s Aladdin™ configuration software provides an intuitive interface for setup, enabling quick and easy customization of scanner settings—even for beginners.

Product Specifications

General Information

• Model: QW2120-BKK1S
• Product Type: Corded Handheld Linear Imager
• Brand: Datalogic
• Product Line: QuickScan
• Color: Black

Barcode Capabilities

• Barcode Dimension: 1D
• Scan Pattern: Omni-directional
• Scan Rate: 400 scans/sec
• Image Sensor: Imager
• Maximum Scan Resolution: 4 mil
• Depth of Field:
  • 1″ – 6″ @ 5 mil
  • 0″ – 9.4″ @ 7.5 mil
  • 0″ – 13.8″ @ 10 mil
  • 0″ – 15.7″ @ 13 mil
  • 0″ – 23.6″ @ 20 mil

Supported Symbologies

• 1D/Linear Codes: All standard 1D barcodes including GS1 DataBar
• Postal Codes: Australian Post, British Post, Canada Post, China Post, Japanese Post, KIX, Korea Post, Planet Code, Postnet, Royal Mail (RM4SCC)
• Stacked Codes: GS1 DataBar Composites, Expanded Stacked, Stacked Omnidirectional

Physical Characteristics

• Height: 6.7 in
• Width: 2.5 in
• Depth: 2.7 in
• Weight: 4.2 oz (approx.)
