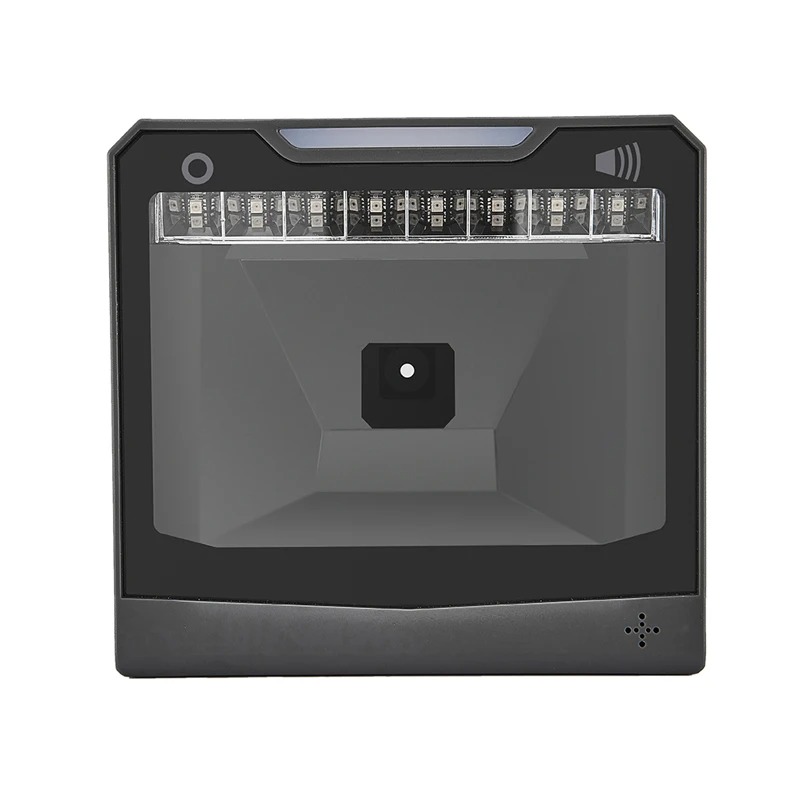

Micro Wired 2D Table Mount Scanner (OCBS T214)

The Micro Wired 2D Table Mount Scanner (OCBS T214) is a premium desktop barcode scanner designed for retail, hospitality, and self-checkout environments. It supports both 1D and 2D barcode formats, including QR codes displayed on mobile screens, with a large reading window for fast and accurate scanning. With wired USB connectivity, a non-slip base, and durable construction, the OCBS T214 delivers reliable performance in high-traffic environments, making it ideal for POS systems, ticketing, inventory, and coupon scanning.

Product Features

Large Reading Window

The scanner offers an expansive scan window that allows easy barcode presentation without exact alignment, speeding up checkout and mobile payment transactions.

1D & 2D Barcode Compatibility

Supports a wide range of barcode formats, including Code 39, Code 128, UPC/EAN, QR Code, DataMatrix, PDF417, and Aztec.

Wired USB Interface

Standard USB connection ensures plug-and-play setup for POS systems, kiosks, and computers.

Durable Table-Mount Design

Low-profile, stable design with a non-slip base ensures secure placement on counters; built to withstand daily wear and tear.

Screen & Mobile Code Recognition

Optimized to scan barcodes displayed on smartphones or tablets, suitable for mobile payments, coupons, and ticketing.

Product Specifications

• Model: OCBS T214
• Interface: USB
• Operating Voltage: 5 V DC
• Starting Current: 380 mA
• Working Current: 240 mA
• Standby Current: 190 mA
• Shock Specification: 8 G r.m.s., 10–500 Hz, 2 hours per axis, 3 axes
• Sensor: CMOS overall exposure type
• Light Source: Warm yellow LED
• Field of View: 44° horizontal, 34° vertical
• Typical Depth of Field: Code39 (5 mil): 0–120 mm; Code39 (13 mil): 0–240 mm; QR (20 mil): 0–210 mm; Mobile QR: 20–650 mm
• Ambient Light Immunity: 0–100,000 lux
• Scan Angles: Pitch ±65°, Roll 360°, Skew ±65°
• Weight: Approx. 437 g
• Dimensions: Approx. 151 × 142 × 84 mm
• Operating Environment: 0°C to 45°C, 10–80% humidity (non-condensing)
