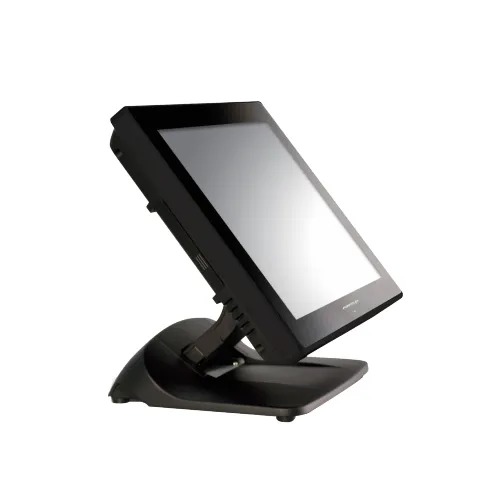

Posiflex PS-3316E Touch POS System

Posiflex PS-3316E Touch POS System is a high-value, fanless point-of-sale terminal featuring a 15.6-inch widescreen display. Designed to meet the needs of businesses across retail and hospitality sectors, this entry-level system offers exceptional flexibility, expandable I/O options, and quiet, reliable performance in a sleek and compact form factor. With its modern architecture and intuitive design, the PS-3316E delivers the essential features needed for efficient, professional POS operations.

Product Features

Slim and Flexible Design

The streamlined PS-3316E includes a foldable base that allows users to adjust screen height and angle to fit different environments and applications, maximizing usability and comfort.

Fanless Architecture

Built for silent operation, the fanless design helps reduce dust buildup and mechanical failure, resulting in quieter performance and lower long-term maintenance costs.

Optimized Peripheral Management

Separate top and bottom I/O layouts provide organized and clutter-free cabling for connected peripherals, making the system more reliable and easier to maintain.

Widescreen LCD Touch Interface

The 15.6-inch TFT LCD with 1366 x 768 resolution and 5-wire resistive touchscreen delivers responsive input and excellent visibility, ideal for high-traffic POS environments.

Expandable and Configurable

Powered by an Intel® Bay Trail J1900 quad-core processor, the system supports up to 8 GB of DDR3L memory and offers ample I/O for USB, serial, cash drawer, and LAN connections, supporting diverse retail and service workflows.

Product Specifications

• Processor
  • Intel® Bay Trail J1900 Quad-Core, up to 2.42 GHz, 2 MB Cache
• Memory
  • DDR3L SO-DIMM x 1, up to 8 GB
• Storage
  • 1 x SATA, SSD included by default
• Display
  • 15.6″ TFT LCD (Resolution: 1366 x 768)
• Touchscreen
  • 5-wire resistive touch
• Power Supply
  • 12V / 40W
• Operating System Support
  • Windows 7
  • POSReady 7
  • Windows Embedded 8.1 Industry
  • Windows 10 IoT
  • Linux (upon request)
• I/O Ports
  • Serial Ports: 4 (DB9 x 3, RJ50 x 1; 5V/12V support)
  • USB Ports: 5 x USB 2.0
  • Powered USB (optional): 1 x 24V, 3 x 12V via GEN8 base
  • LAN: 1 x Gigabit Ethernet (10/100/1000 Mbps)
  • VGA: 1 (with 12V support for Posiflex monitors)
  • Cash Drawer (CR) Port: 1 (supports 2 drawers via Y-cable)
  • Parallel Port: Optional via conversion cable
  • PS/2 Port: Optional via conversion cable
• Audio
  • Internal buzzer
• Physical Dimensions
  • 372 mm (W) x 252.7 mm (D) x 291.4 mm (H)
  • Weight: 5.86 kg
• Environmental Conditions
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 70°C
  • Operating Humidity: 20% to 90% RH (non-condensing, SSD equipped)
  • Storage Humidity: 10% to 90% RH
• Built-in Options
  • Wi-Fi: Supported via USB Wi-Fi dongle
• Optional Attachments
  • POS Monitors: 7″ or 9.7″ non-touch USB LCD
  • Customer Displays:
    • 2 x 20 VFD
    • 2 x 20 LCD
    • 7″ color graphical LCD
  • Additional Devices:
    • MSR
    • iButton
    • RFID
    • Fingerprint Sensor
    • Keypad
